Products show

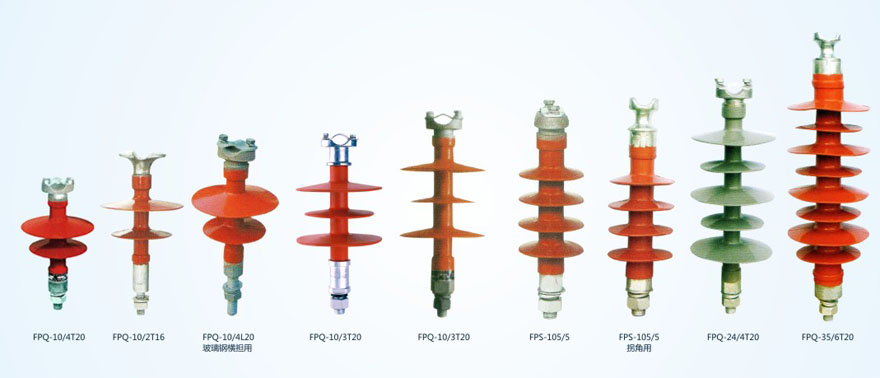

Compound needle insulator

detailed：

This product is suitable for high pressure line facilities, has the good hydrophobic, anti-aging. Resistant to leakage on mark sex and electrical erosion resistance loss sex, has the very high tensile strength and bending strength, its high mechanical strength, impact resistance is strong, shock and the brittle performance is good, light weight, easy installation, the top and bottom installation size and the corresponding CiZhen installation the same size, can exchange use.

MODEL	Rated bending load	Structure height	Umbrella the	Minimum arc distance	Minimum nominal creepage distance	Threads diameter lower	Rated voltage	Highest voltage	Industrial frequency 1 min wet tolerance voltage	The wave lightning sprint tolerance voltage
FPQ1-10/2T16-20	2	240+-5	140/105	110	300	16	10	12	40	90
FPQ-10/4T16-20	4	183+-5	140/105	127	300	16-20	10	12	40	90
FPQ-10/3T16/20	3	260+-5	146/112	184	460	16-20	10	121	50	110
FPQ-105/5	5	260+-5	90	173	380	16-20	10	12	42	105
FPQ-35/6T16-20	6	450+-5	145/115	340	950	20	35	40.5	95	230
FPQ-10/5T16-20	5	245+-5	146/112	183	460	16-20	10	12	50	110
FPQ-24-4T20	4	335+-5	1446/112	273	655	20	24	28	60	125
